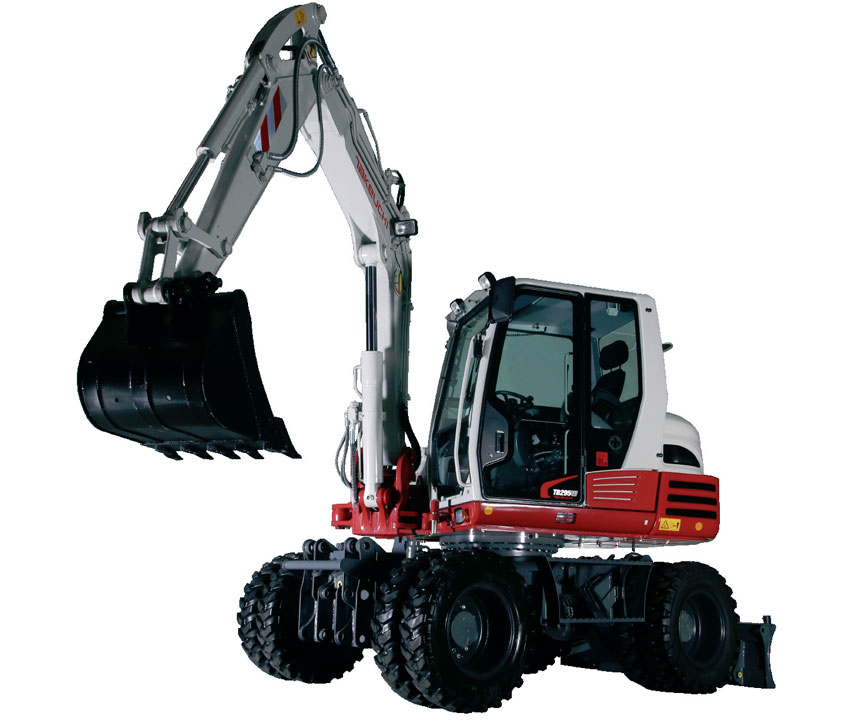

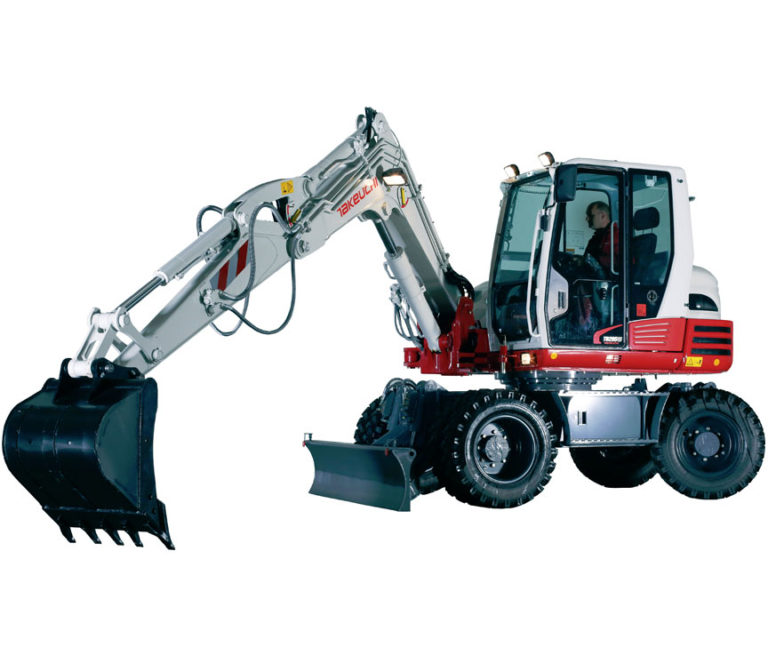

Takeuchi TB295W Wheeled Excavator

Takeuchi Mini Excavators


The Takeuchi TB295W, launched in 2014, is one of the latest product refinements from Takeuchi Manufacturing. Hours of research and development have gone into producing a completely new model that is one of the finest 9.5 tonne Wheeled Excavators currently available.

Takeuchi has become renowned for reliability and performance since the formation of Takeuchi UK in 1995, and the Takeuchi TB295W is no exception. One of the most operator friendly environments on machines of this size means that the operator feels he is at the hands of a much larger excavator and in truth is probably doing the work of a much larger excavator too.

The Takeuchi TB295W Wheeled Excavator weighing in at around kgs features:-

  • Max dig depth – 3895mm
  • Max dump height – 4615mm
  • Max ground level reach – 6830mm
  • Proven 4cylinder Yanmar 4TNV98T 49.6kW diesel engine
  • Excellent service access provided by fully opening body panels and covers
  • Reduced tailswing over previous models
  • Load sensing hydraulics  offer improved cycle times and hydraulic efficiency
  • Deluxe ROPS/FOPS cab with up and over windscreen, sliding windows, high back suspension seat with adjustable arm rests, radio, MP3 socket, heater/demister with air conditioning as standard
  • Boom offset 80 degrees to left and 60 degress to right
  • Single/dual flow auxiliary pipework – flow rates are programmable from inside the cab and features three preset modes for differing attachments
  • Proportional auxiliary control
  • Load hold valve to boom ram preventing boom fall in the event of hose failure
  • Long arm
  • Engine shutdown system in the event of low oil or high temperatures
  • Smooth and proportional control
  • 2 years or 2000 hours warrnaty whichever comes
  • Operating weight 9550kg

Choice of attachments inclduing hitches, buckets and hydraulic breakers.

For more information please download the attached pdf file or feel free to contact us on 0161 494 6000
